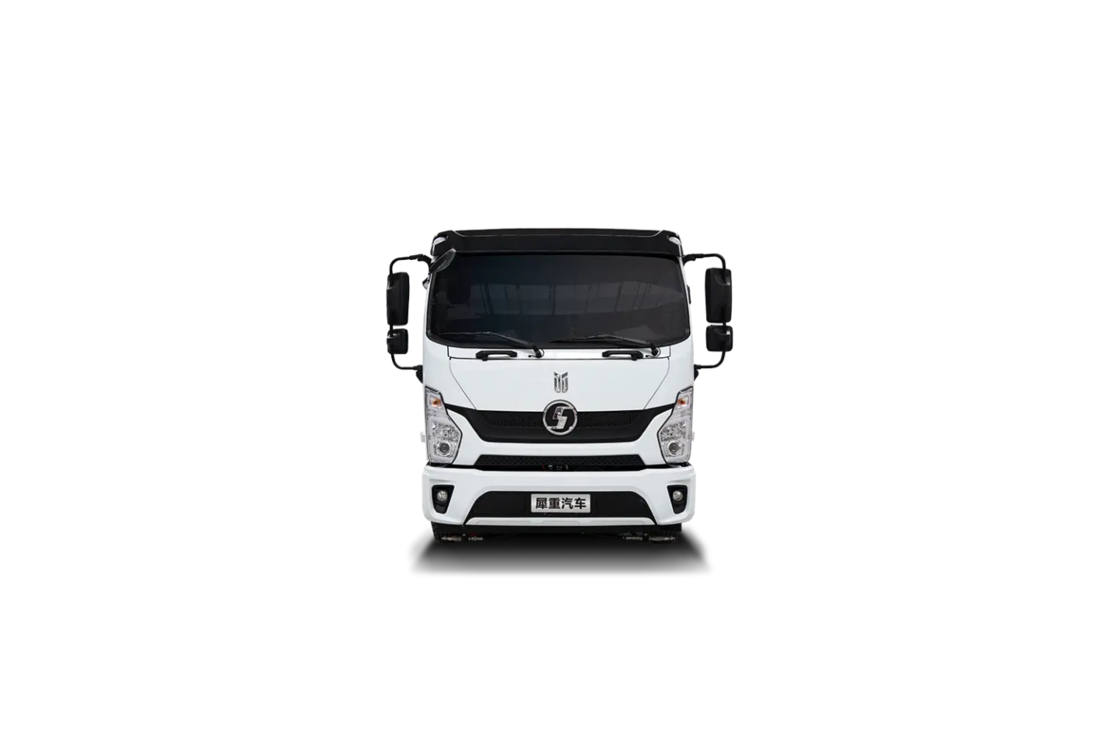

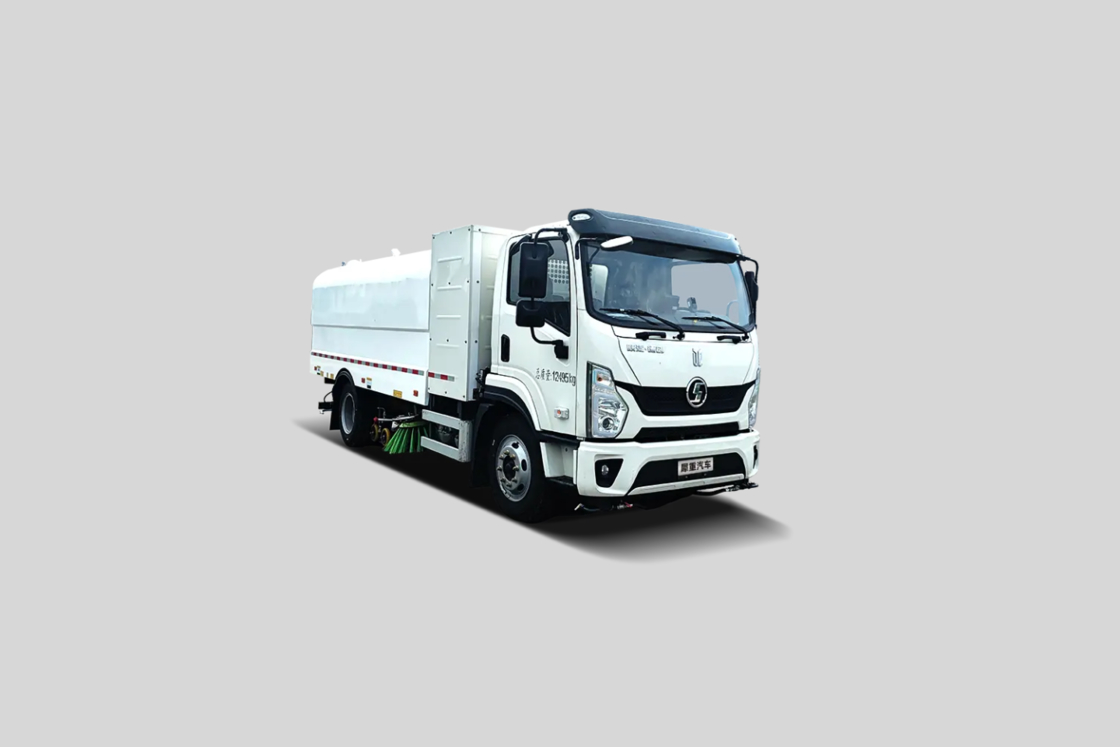

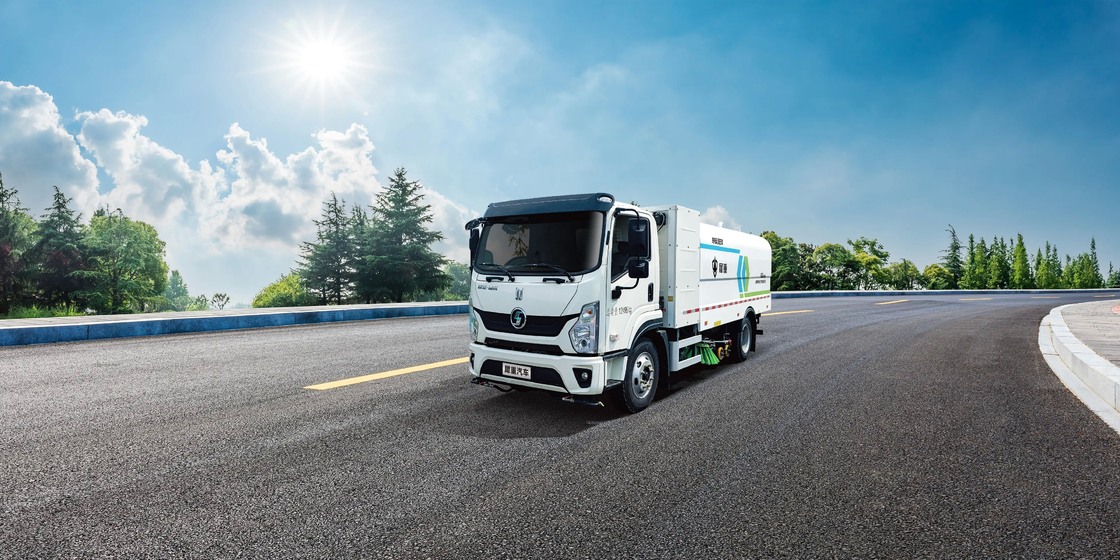

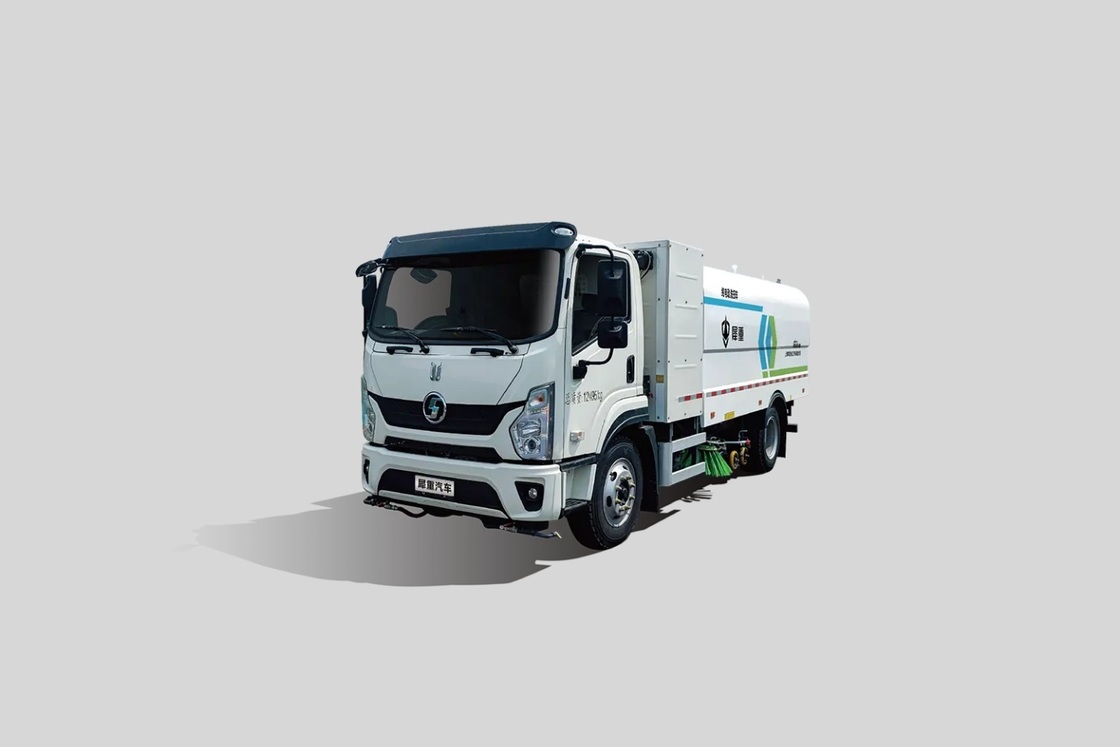

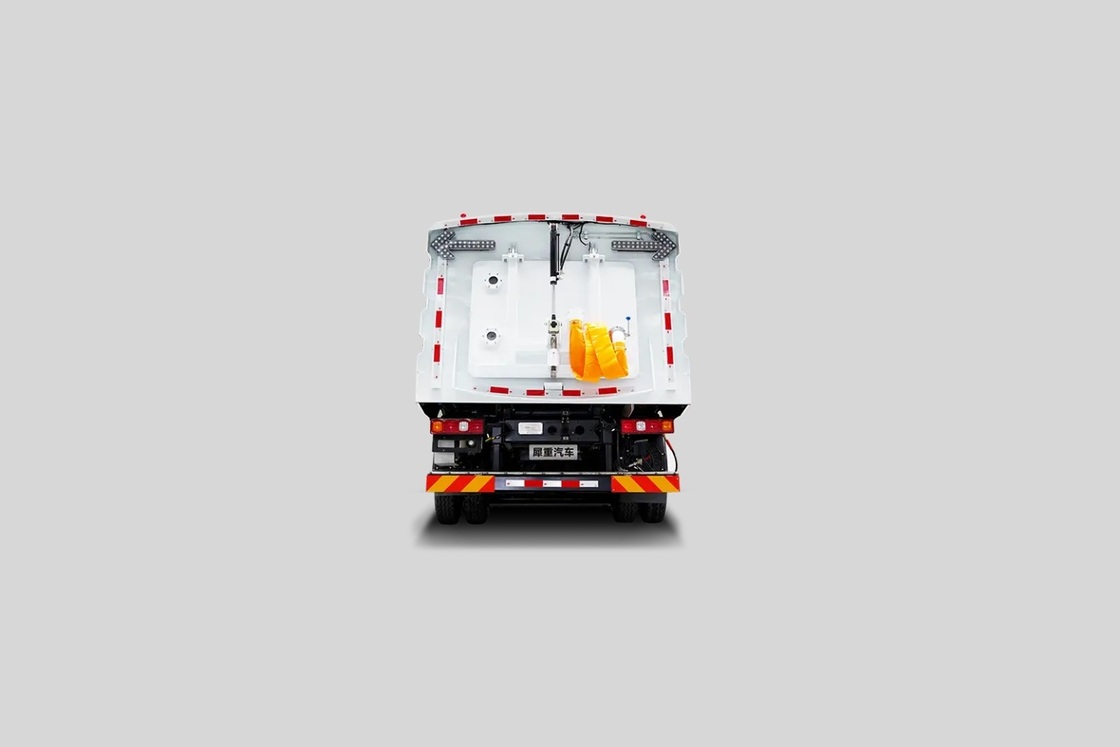

Name: Sanitation Vehicles Pure electric Zero Emission Type 12 T Washing Sweeper
Brand: Zhongzhi First Bus Chengdu Co., Ltd.
SKU: CDL5070TYHDFBEV
Price: 150,100.00 USD
Availability: InStock

Dom > produkty > Pojazd sanitarny >

Sanitation Vehicles Pure electric Zero Emission Type 12 T Washing Sweeper

Miejsce pochodzenia:

Chiny

Nazwa handlowa:

XEAZON

Orzecznictwo:

ISO 9001

Numer modelu:

CDL5070TYHDFBEV

Skontaktuj się z nami

Poprosić o wycenę

Szczegóły Produktu

Długość x szerokość x wysokość (mm):

5850×1740×2220

Maksymalna masa własna (kg):

6550/4800

Marka podwozia:

Dongfeng

Pojemność zbiornika na wodę (m³):

2.2

Szerokość zamiatania (m):

2.6

Całkowity czas pracy (h):

≥10

Objętość pojemnika (m³):

2.2

Maksymalne nachylenie:

≥20%

Przebieg wytrzymałościowy (km):

300 (metoda prędkości równoważnej)

Moc znamionowa/szczytowa silnika (kW):

60/120

Znamionowy/szczytowy moment obrotowy silnika (N·m):

164/420

Marka/pojemność akumulatora (kWh):

CATL/105.28

Warunki płatności i wysyłki

Minimalne zamówienie

Czas dostawy

40-60 dni roboczych

Zasady płatności

T/T, akredytywa

Możliwość Supply

25000 jednostek/rok

PRODUKTY POWIĄZANE

Wideo

Sanitation Vehicles New Energy Type 7T Washing Sweeper

Uzyskaj najlepszą cenę

Sanitation Vehicles New Energy Type 4.5T Road Maintenance Vehicle

Uzyskaj najlepszą cenę

Skontaktuj się z nami

+8613608032908

jolin@zevauto.com

Skontaktuj się teraz

Opis produktu

Sanitation vehicles pure electric zero emission type 12T washing sweeper.

12T washing sweeper, the vehicle model primarily serves multiple functions such as road flushing, road sweeping, garbage collection, curb and curb facade washing, high-pressure spray gun, dust suppression spraying, corner spray, dump container cleaning, etc.

Key Specifications

Attribute	Value
Product name	Electric Sanitation Vehicle
Type	Zero Emission
Fuel type	Electric
Dimensions (mm)	742523502845
Chassis brand	Dongfeng
Water tank volume (m³)	6
Sweeping width (m)	3.25
Comprehensive operating time(h)	more than 8 hrs
Volume of container(m³)	3.5
Maximum gradient	≥20%
Endurance mileage (km)	400(equivalent speed method)
Motor rated/peak power (kW)	105/160
Motor rated/peak torque (N·m)	500/1050
Battery brand/capacity (kWh)	CATL/175.03

Key Advantages

Zero emission : Electric type
Long operating time after a single water addition: The clean water tank has a super large volume, which is higher than similar products and effectively extend the operation time after a single water addtion.
Complete operation functions - It adopts the layout of "middle two sweeping disks middle wide sution nozzle and V shape spray rod" offering road sweeping, cleaning, curb brushing, dust suppression spraying, corner spray. hand held spray gun operation and other functions.
Corrosion resistant container: material is 304 stainless steel, which provides high corrosion resistance and exellent sealing.

Customization Options

Available as electric sanitation vehicle new energy type 7T 4.5T washing sweeper.

Manufacturer Information

Headquartered in Chengdu city, Sichuan province, China, ZEV is a group company specializing in the development, production, sales and market application of buses and coaches. Since its foundation in 2006, ZEV's culture of continuous innovation has made it a leading manufacturer in China.

With research platforms including the enterprise technology center and test center, ZEV operates 2 plants with an annual production capacity reaching 25,000 units. The company offers a 5m-18m product lineup of battery electric buses and coaches covering various segment markets.

In 2022, ZEV was awarded 825 units of 12m full electric city bus bidding from Chengdu Transport Cooperation, with 400 units serving during the 31st FISU World University Games.
